asc-safetylight
ASC-Set Item No. 1204
ASC-Set Item No. 1204

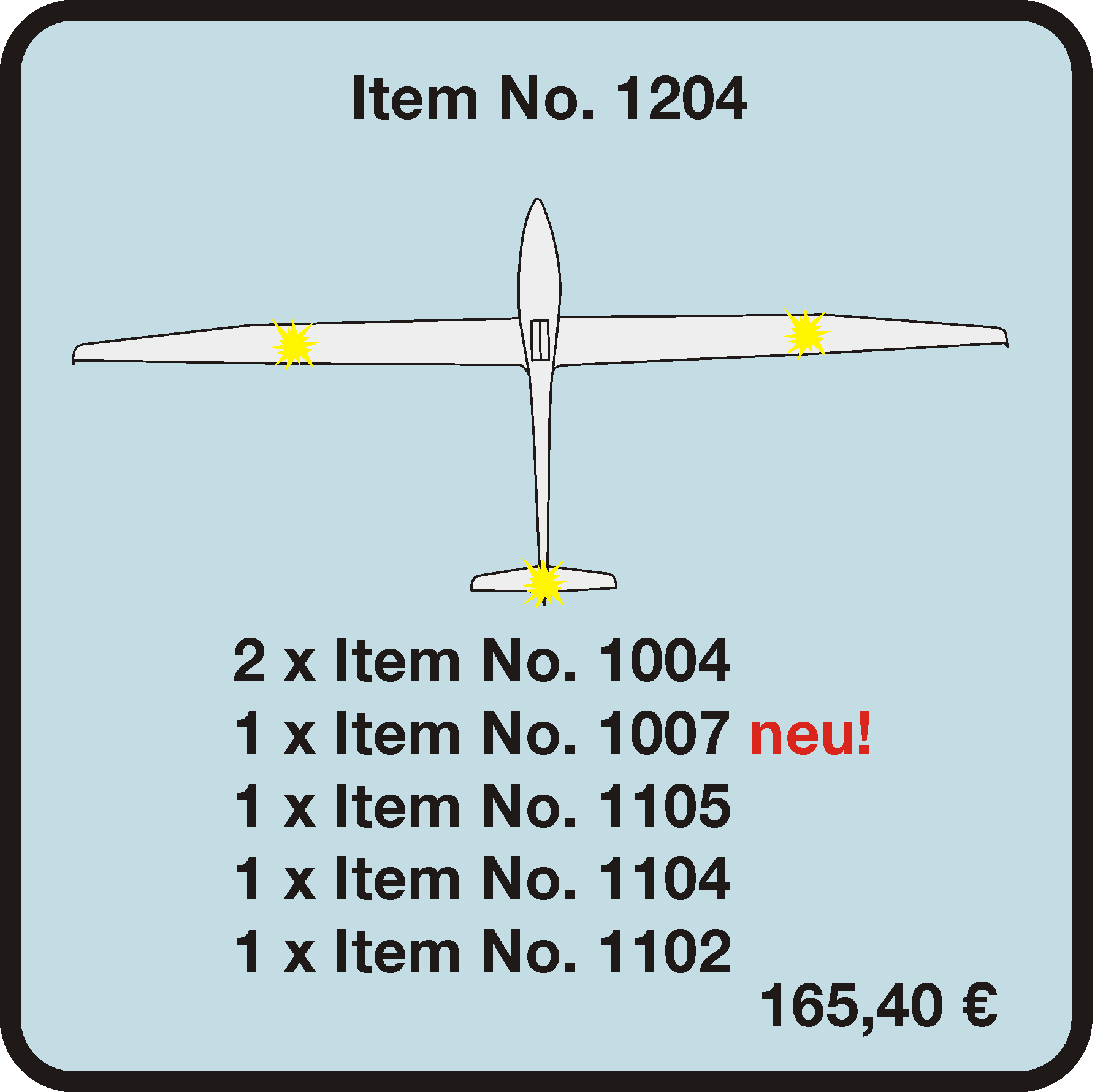

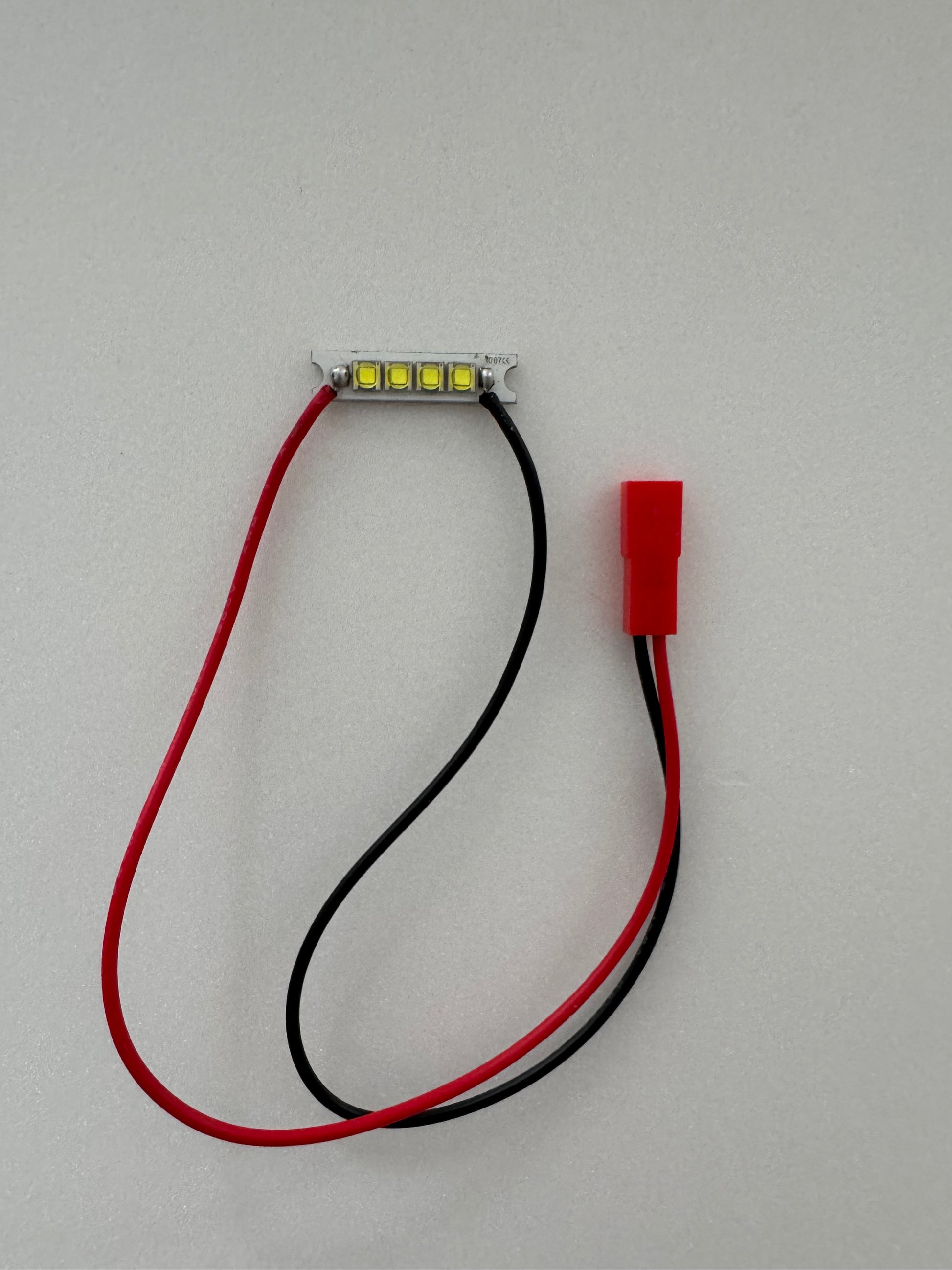

The set combines high-performance LED modules with compact flash electronics and matching accessories to form a complete lighting solution for RC models. The set includes 1× Item No. 1007, featuring four ultra high-power COB LEDs rated at 9 W on a copper board, as well as 2× Item No. 1004, each featuring four ultra high-power COB LEDs rated at 8.5 W on an aluminium board. All LEDs reach a maximum temperature of only 32 °C in flash operation while delivering very high brightness, making them ideal for fuselages, bodies, and wings. Control is provided by the 1104 flash control electronic with simple preconfigured modes, galvanic isolation from the receiver, and a rapid flash mode. The system is fully plug-and-play. The set is completed by the 1105 servo cover set and the ASC universal cable 1102, which serves as a flexible extension solution for fuselage and wing wiring. The set is suitable for RC models in the Aero (gliders, powered aircraft, drones, helicopters), Ship (sailboats, motorboats, drones), and Car (off-road vehicles, indoor models, drones) categories.
Couldn't load pickup availability
Recommended Accessories
Recommended Accessories
Warning
Warning
Not suitable for children under the age of 14!
Electronic Component:
This product is an electronic component intended exclusively for use in RC models.
It is not a toy and not suitable for children.
High Light Intensity:
This product may be operated with high-intensity LED light sources.
Avoid direct eye exposure to the light source or connected LEDs!
Strobe Effect:
This product emits flashing light.
Strobe modes may trigger epileptic reactions in sensitive individuals.
Intended Use:
Suitable only for RC applications
Not intended for household use
For low-voltage RC applications only
Operating Instructions:
Operate only with a suitable, stabilized power supply or 3S LiPo battery (11–13 V) in accordance with the technical specifications
Ensure adequate heat dissipation during operation
Do not reverse polarity (black = − / red = +); incorrect wiring may cause permanent damage to the product or LEDs
Do not use damaged or pinched cables
Do not exceed the specified current rating
Use only compatible connectors (JR / JST AWG22)
EU Responsible Person (Importer):
Thomas Blumenschein
Uhlandstraße 18
73525 Schwäbisch Gmünd
Germany
E-Mail: service@asc-safetylight.com
CE Compliance:
This product is CE marked and complies with the applicable EU regulations for electrical and electronic devices.
