ASC-Set Item No. 1205
ASC-Set Item No. 1205
The set consists of the compact 1104 flash electronics with preconfigured modes and galvanic isolation from the receiver, combined with two ultra high-power COB LEDs (1002). The flash electronics is fully plug-and-play and provides simple lighting functions including a rapid flash mode. The high-power LEDs deliver 20 watts per LED on a copper board and reach a maximum temperature of only 32 °C in flash operation while providing very high brightness. The set is suitable for RC models in the Aero (gliders, powered aircraft, drones, helicopters), Ship (sailboats, motorboats, drones), and Car (off-road vehicles, indoor models, drones) categories.
Couldn't load pickup availability

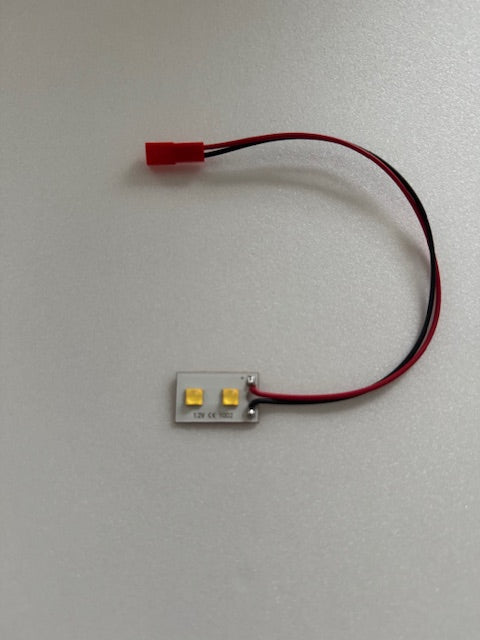

Item No. 1002
Item No. 1002
- 2 × ASC High Power LEDs
- 20 Watt
- < 500 m
- 11 – 13 V
- 32 ° max
- Flash function only
- 6,500 K
- 120° beam angle
- 850 – 1,500 mA
- 1,500 – 2,000 lm flux
- 15 × 25 × 4 mm
- JST AWG22 connector
- Net weight 5 g / Gross weight 10 g
Item No. 1104
Item No. 1104
- Blitz Electronics
- On – Off
- Flash frequency
- Alternating flash function
- Double flash function
- Continuous light function
- Galvanically isolated from receiver
- Rapid flash function
- JR plug for receiver
- 2 × outputs for LEDs up to max. 30 Watt
- JST AWG22 socket3S
- Lipo 11–13 VJST AWG22 plug
- Net weight 5.2 g / Gross weight 10 g
- 20 × 12 × 3 mm
Product Safety & Warnings
Product Safety & Warnings
Not suitable for children under the age of 14!
Light Intensity:
This product generates very high light intensity.
Avoid direct eye exposure to the (connected) LED light sources!
Strobe Effect:
This product emits flashing light.
The strobe modes may trigger epileptic reactions in sensitive individuals.
Intended Use:
Intended exclusively for RC applications
Not intended for household use
Electronic component designed for use in RC models
Not a toy
Operating Instructions:
Operate only with a suitable, stabilized power supply or a 3S LiPo battery (11–13 V) in accordance with the technical specifications
Observe the maximum LED output power: 2 × max. 30 W per output
Ensure adequate heat dissipation during operation
Do not reverse polarity – incorrect wiring may cause permanent damage to the product or LEDs
Use only compatible connectors (JR / JST, AWG22)
EU Responsible Person (Importer):
Thomas Blumenschein
Uhlandstraße 18
73525 Schwäbisch Gmünd
Germany
E-Mail: service@asc-safetylight.com
CE Compliance:
This product is CE marked and complies with the applicable EU regulations for electrical and electronic devices.
