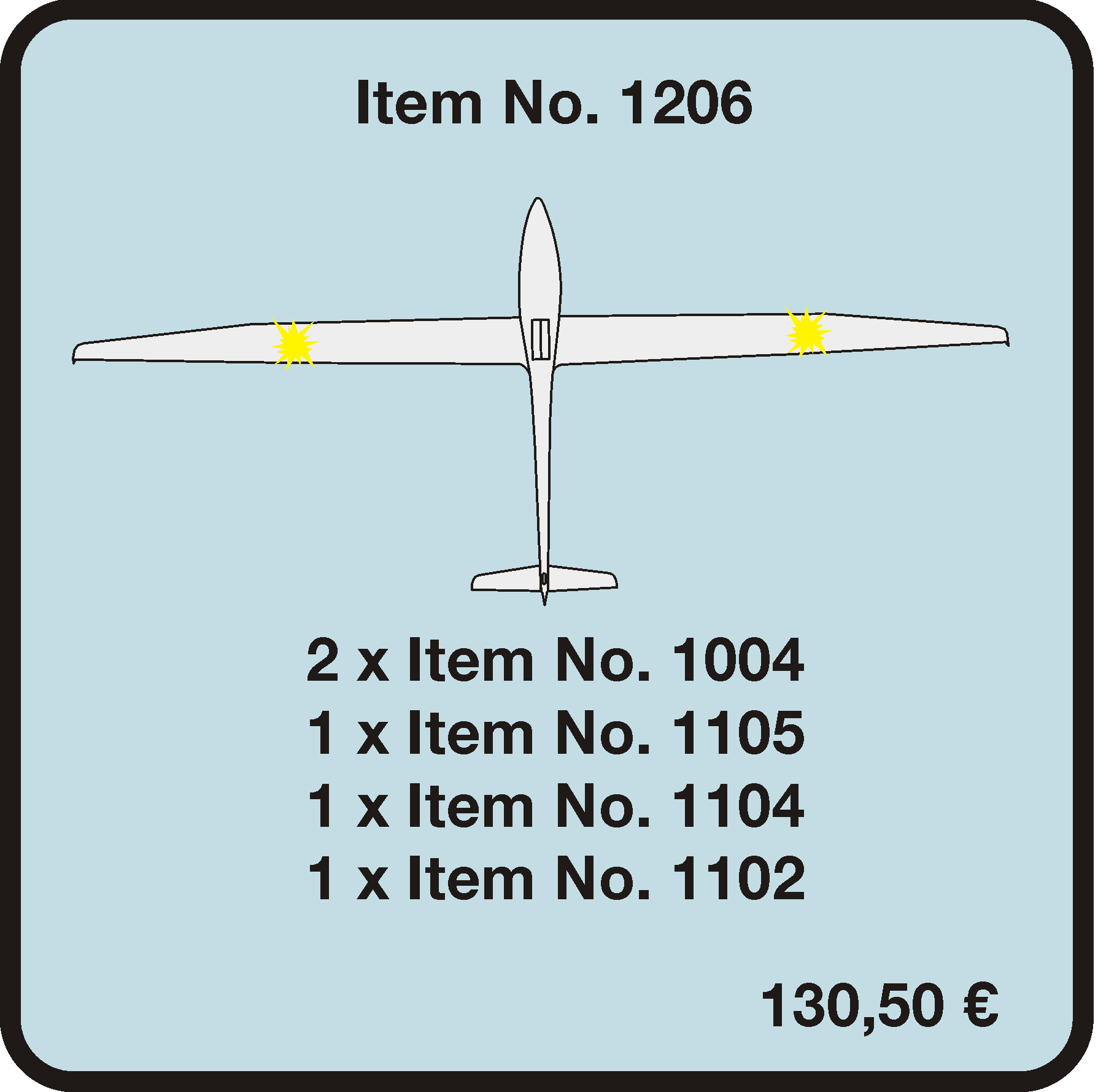

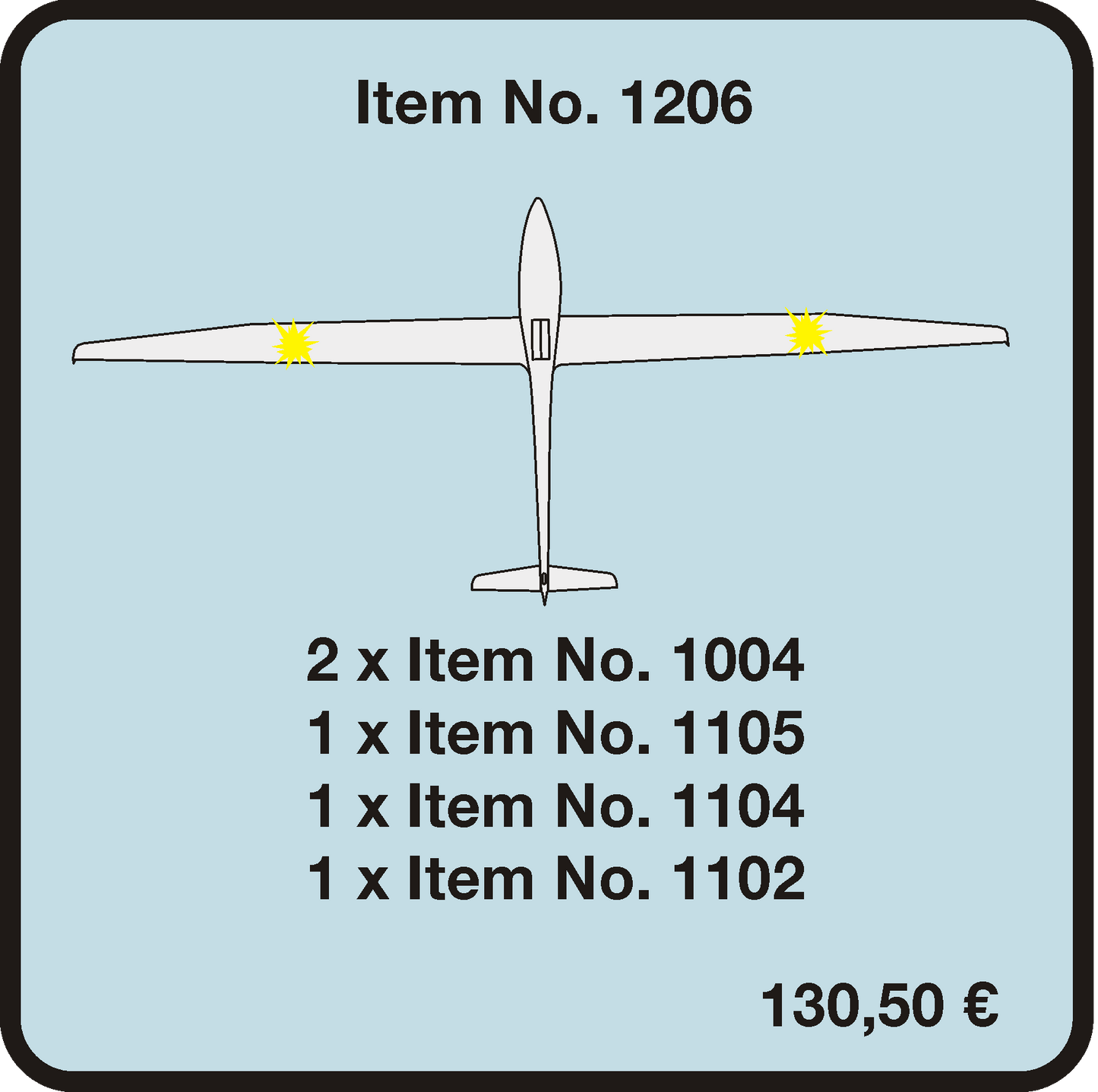

ASC-Set Item No. 1206
ASC-Set Item No. 1206
The set combines compact flash electronics, high-performance LED modules, and matching accessories to create a complete lighting solution for RC models. It includes the 1104 flash control electronic with simple preconfigured modes and galvanic isolation from the receiver, ensuring safe and reliable operation. The system is fully plug-and-play and provides multiple lighting functions, including a rapid flash mode. The lighting system is complemented by the 1004 ultra high-power COB LEDs, featuring four LEDs rated at 8.5 W each on an aluminium board. In flash operation, the LEDs reach a maximum temperature of only 32 °C while delivering very high brightness, making them ideal for installation in fuselages, bodies, and wings. The set is completed by the 1105 servo cover set and the ASC universal cable 1102, which serves as a flexible extension solution for fuselage and wing wiring. The set is suitable for RC models in the Aero (gliders, powered aircraft, drones, helicopters), Ship (sailboats, motorboats, drones), and Car (off-road vehicles, indoor models, drones) categories.
Couldn't load pickup availability
Item No. 1004
Item No. 1004
- 4 × ASC High Power LEDs
- 8.5 watt
- < 500 m
- 11 – 13 V
- 32 ° max
- Flash function only
- 6,500 K
- 120° beam angle
- 700 mA
- 1,500 – 2,000 lm flux
- 10 × 20 × 4 mm
- JST AWG22 connector
- Net weight 3 g
Item No. 1105
Item No. 1105
- Transparent servo cover
- Aerodynamic teardrop shape
- 30 × 10 × 5 mm (L × W × H)
- Elliptical base
- Transparent servo cover
- 30 × 10 × 5 mm (L × W × H)
- Rectangular base
- Suitable for Item No. 1004
Item No. 1104
Item No. 1104
- Blitz Electronics
- On – Off
- Flash frequency
- Alternating flash function
- Double flash function
- Continuous light function
- Galvanically isolated from receiver
- Rapid flash function
- JR plug for receiver
- 2 × outputs for LEDs up to max. 30 Watt
- JST AWG22 socket3S
- Lipo 11–13 VJST AWG22 plug
- Net weight 5.2 g / Gross weight 10 g
- 20 × 12 × 3 mm

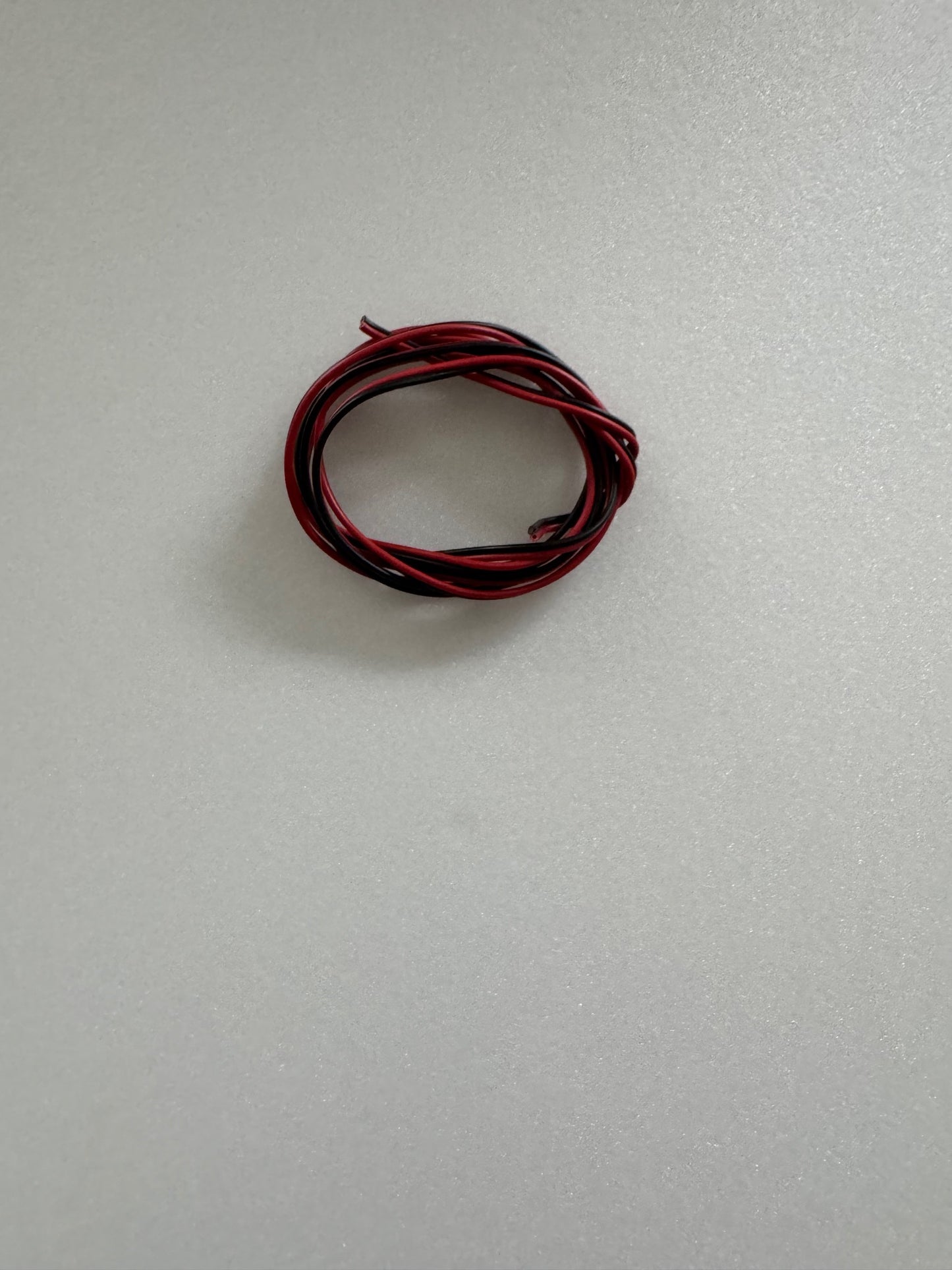

Item No. 1102
Item No. 1102
- Cable
- 2 × 0.15 mm²
- Black / Red
- 4,000 mm
- Net weight 25 g / Gross weight 40 g
Product Safety & Warnings
Product Safety & Warnings
Not suitable for children under the age of 14!
Electronic Component:
This product is an electronic component intended exclusively for use in RC models.
It is not a toy and not suitable for children.
High Light Intensity:
This product may be operated with high-intensity LED light sources.
Avoid direct eye exposure to the light source or connected LEDs!
Strobe Effect:
This product emits flashing light.
Strobe modes may trigger epileptic reactions in sensitive individuals.
Intended Use:
Suitable only for RC applications
Not intended for household use
For low-voltage RC applications only
Operating Instructions:
Operate only with a suitable, stabilized power supply or 3S LiPo battery (11–13 V) in accordance with the technical specifications
Ensure adequate heat dissipation during operation
Do not reverse polarity (black = − / red = +); incorrect wiring may cause permanent damage to the product or LEDs
Do not use damaged or pinched cables
Do not exceed the specified current rating
Use only compatible connectors (JR / JST AWG22)
EU Responsible Person (Importer):
Thomas Blumenschein
Uhlandstraße 18
73525 Schwäbisch Gmünd
Germany
E-Mail: service@asc-safetylight.com
CE Compliance:
This product is CE marked and complies with the applicable EU regulations for electrical and electronic devices.
